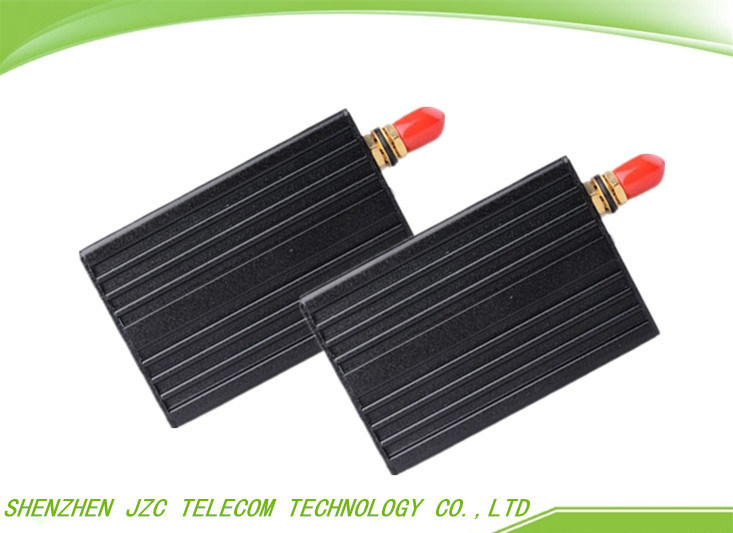

433mhz Low Power 500mw RF Data Module RS232 / RS485 With Metal Cover


Large Image :  433mhz Low Power 500mw RF Data Module RS232 / RS485 With Metal Cover Get Best Price

Product Details:
Place of Origin: Shenzhen , Guangdong , China
Brand Name: JZX
Certification: CE
Model Number: JZX877
Payment & Shipping Terms:
Minimum Order Quantity: More than 2Pieces
Price: Negotiation
Packaging Details: Cardboard Box
Delivery Time: 2-3 working days upon receive payment
Payment Terms: Western Union, T/T
Supply Ability: 10000pcs / Month
Detailed Product Description
Working Temperature: -20 - +65 Antenna Impedance: 50
Size: 63mm×43mm×15mm Sensitive: -123dbm(1200bps)
Distance: 2000-3000M Power Supply: DC 5±0.5V
High Light:

RF data module


433mhz transmitter and receiver module


433mhz Low Power 500mw RF Data Module RS232 / RS485 With Metal Cover


About JZX877:


JZX877 set parameters, the market is no longer used wireless modules used in the traditional way to

change the parameters of the jumper, causing long-term use because it brings bad, options less dynamic

change is not easy, a lot of inconvenience. JZX877 using the serial port setting parameters easy and

quick, easy set refers to the chip embedded in the user program and operating software in the

background. Meanwhile module 1200/2400/4800/9600/19200/38400bps six kinds of rate and frequency

of 16; provide UART / TTL, RS232, RS485 three kinds of interfaces. Choice for users.




Transmit Power:


Receiver Sensitivity:


Transmit Current:


Receive Current:


Sleeping Current


Channel Amount

16 channel

Working Temperature:

-20 - +65

Working Humidity:

10%~90% Relative humidity,

Power Supply DC 5±0.5V








 Transparent data transmission
Transparent data interface is offered to suit any standard or nonstandard user protocol.Any false data generated in the air can be filtrated automatically (What has been received is exactly what has been transmitted);


 Multi- channel
The standard JZX877 configuration provides 16 channels to meet the multiple communication combination mode of the user.


 High speed wireless communication and Large data buffer zone
   When the RF baudrate is bigger than COM baudrate,allowing to transmit unlimited length data at one time,when the RF baudrate is smaller or equal to the COMs,allowing the transmission of 255 Bytes data.



 Watchdog monitor
Watchdog monitors the inner function,it changes the traditional product structure and also improve the reliability of our modules.



433mhz Low Power 500mw RF Data Module RS232 / RS485 With Metal Cover433mhz Low Power 500mw RF Data Module RS232 / RS485 With Metal Cover

Note:  As JZX877 mode TTL interface module, so the PC must be added to connect the TTL to


RS232 converter, and converter must supply DC 5V of electricity.
