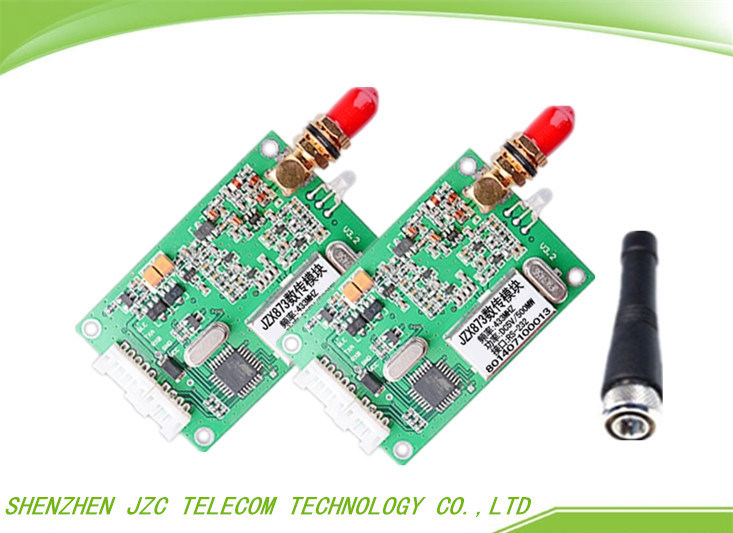

Alarm System Wireless Telemetry Module / 433mhz Long Range RF Module RS232 Unit

large.img.alt
small.img.alt

Large Image :  Alarm System Wireless Telemetry Module / 433mhz Long Range RF Module RS232 Unit Get Best Price

Product Details:
Place of Origin: Shenzhen , Guangdong , China
Brand Name: JZX
Certification: CE
Model Number: JZX873
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Dollar
Packaging Details: Standar Cardboard Box
Delivery Time: 3~5 working days for on a large scale
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs /Week
Detailed Product Description
Modulation: GFSK Frequency: 433MHz,868Mhz ,can Be Coutomized 915Mhz
Distance: 2000~3000M Transmission Power: 500MW
Buad Rate: 1200~38400/bps Power Supply: 5V
High Light:

wireless transmitter and receiver module

,

Long Range rf module



Alarm System Wireless Telemetry Module / 433mhz Long Range RF Module RS232 Unit



Abstract:



JZX873 wireless module, the use of ISM frequency band; can be set to 16 communication channels,

transmit power 500mW (27dB), high receiver sensitivity-123dbm,

size 63mm * 43mm * 10mm (without antenna base), a large number of the billing system , industrial

control field use, very convenient for users to do the embedded wireless systems.



Specification:



Specification of JZX873:

Modulation:

GFSK

Frequency:

433MHz

Transmit Power:

500mW

Transmit Current:

<360mA

Receive Current:

<45mA

Sleep Current:

<1mA

Interface:

UART/TTL   RS232  RS485

Size:

58mm*38mm*10mm

Working Temperature:

-20°C~75°C(Customized  to -40°C~85°C)

Working humidity:

10%~90% Relative humidity, non condensing

Channel Rate:

1200/2400/4800/9600/19200/38400Bit/s





Applications:



1. Wireless telemetry charging for parking, parking lot;



2. Wireless modem Automobile inspection and four-wheel orientation;



3. Wireless sensor Industrial wireless remote control and air conditioning remote controller;



4. Observation and predication of oil well and hydrological information;



5. Point to multi-point wireless network, wireless on-the-spot bus and automatic data collection system





Description:



JZX873 the use of transparent transmission, in order to ensure the reliability and stability of the

user's system, plus the transmission check-sum or CRC check-sum error detection mode, the error

 data re-transmission. Transceiver module buffer of 512bytes, means that users can be in any state

512bytes of data transfer 1, when the speed is greater than the serial port is set to air rate, is

theoretically unlimited length can send information packets, but does not recommend users to send

long data packets, the proposed length of each packet data between 60 ~ 100B, generally not longer

than the 120B, and recommended user program using the ARQ mode, the error data packets

re-transmission.





Alarm System Wireless Telemetry Module / 433mhz Long Range RF Module RS232 Unit





Trouble and solve ways:



Troubles: Between devices not communicated



Cause and Remedy:



1. Communication at both ends of the air rate, parity inconsistency

2. Frequency inconsistency

3. Without power

4. Module has destroyed

5. The pin of sleep mode not set
