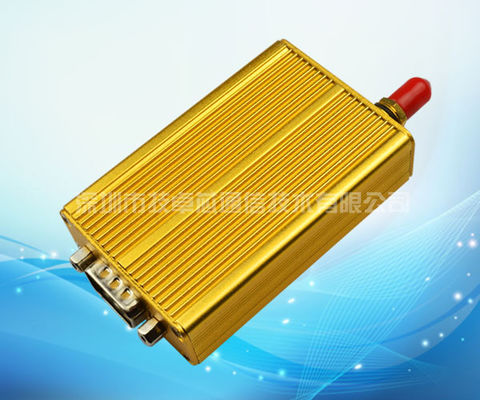

Aluminum Small Wireless 433mhz RF Module GFSK Modulation 100MW JZX874C

large.img.alt
small.img.alt small.img.alt

Large Image :  Aluminum Small Wireless 433mhz RF Module GFSK Modulation 100MW JZX874C Get Best Price

Product Details:
Place of Origin: Shenzhen , Guangdong , China
Brand Name: JZX
Certification: CE
Model Number: JZX874C
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: USD/Negotiation
Packaging Details: Cardboard Box
Delivery Time: 2-3 working days
Payment Terms: Western Union, T/T
Supply Ability: 9999pcs / Month
Detailed Product Description
Working Power: DC 4.5-5.5V Cover: Metal
Transmission Power: 100MW Modulation: GFSK
Distance: 800M
High Light:

rf 433mhz module

,

433mhz transmitter and receiver module

 Wireless LED screen module/433mhz RF Module ,GFSK Modulation, 100MW JZX874C



Features:


Using CC1020 chip, small size, aluminum casing, the firststandard DB9 interface, easy to use.
Narrowband interference is strong, high receiver sensitivity, transmission is stable and reliable.



Application:


Water, electric three tables, smart cards, Access Control, Wirelessline up, PTZ control, building control, yard logistics, anti-theft alarm,smart instrumentation, reactive power compensation, intelligentteaching equipment, physical testing intelligent equipment, measuring equipment, automatic control, home the fields ofintelligent data control and data transmission.


Product Specifications:


◆ uses GFSK modulation mode, reliable line of sight transmission distance up to 800m;


◆ Carrier frequency 433 MHz, can also be ordered 868M/915Mother carrier; ISM band, no applications;


◆ provides 8 channels;


◆ interface / channel rate: 1200/2400/4800/9600/19200/38400bps;


◆ Interface: TTL, RS-232, RS-485 selected by the user;


◆ transceiver, half duplex, sending and receiving data conversionautomatically, as long as the interface to send / receive data to the conversion time is short;





Optional Antenna:



Aluminum Small Wireless 433mhz RF Module GFSK Modulation 100MW JZX874C
