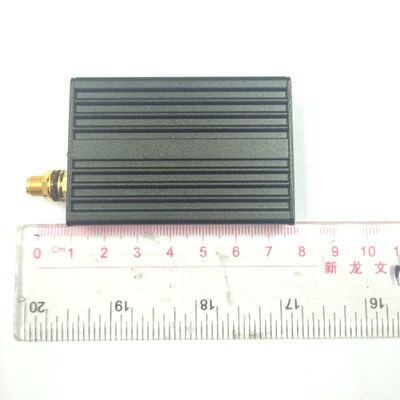

Industrial RF Transmitter And Receiver Module 2km RS232 Interface JZX877 with Antennas

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Industrial RF Transmitter And Receiver Module 2km RS232 Interface JZX877 with Antennas Get Best Price

Product Details:
Place of Origin: China
Brand Name: JZX
Certification: CE,FCC
Model Number: JZX877
Payment & Shipping Terms:
Minimum Order Quantity: 2units
Price: USD
Packaging Details: Standard Package
Delivery Time: 2-3 working days
Payment Terms: Western Union, T/T
Supply Ability: 10000pcs / Month
Detailed Product Description
Interface: TTL,RS232,RS485 Range: 2K~10Km
Power: 500MW Frequency: 433/915/868MHz
Channel: 16 Channel Modulation System: GFSK
Receiving Sensitivity: -123dbm Voltage: 5V
High Light:

Low Power RF Module

,

RF wireless module



Industrial RF Transmitter And Receiver Module 2km RS232 Interface JZX877 with Antennas





Communicated Module



JZX877 wireless module with all the JZX87 series of models to communicate with each other.

Communication as long as you pay attention to the following:

A, select all the modules to the same  channel.
B, you have the same communication module of the air rate.
C, the communication module, power supply, interface connection is connected.





If the actual error rate 10-4, users need to send 1KB about 10000bit information, if the 1KB data as a

packet, sent at least theoretically, there will be a data error in the receiver, then the 1KB data can never

be received correctly. If it is divided into 10 packages, each package 100B, then send 10 packets, the

packets according to a probability of only 1 error, the error in the form of a packet retransmission by

ARQ 1, although it took more than 1 packet and the efficiency decreased by about 10%, but it can

guarantee all the information is correctly received.







Packing&Delivery:



1.  We can ship the products all over the world

2.  We usually use DHL, FedEx, TNT, UPS, EMS,Changwoo ,Dpex ,China Post, Hongkong Postall are

   available

3.  We are not responsible for any accidents, delays or due to the festival or holidays It maybe need more

   delivery days,so plz being patient











Industrial RF Transmitter And Receiver Module 2km RS232 Interface JZX877 with Antennas



Industrial RF Transmitter And Receiver Module 2km RS232 Interface JZX877 with Antennas



Troubles: Between devices not communicated



Cause and Remedy:



*  Frequency inconsistency

 * Without power

*  Module has destroyed

*  The pin of sleep mode not set

*  Communication at both ends of the air rate, parity inconsistency





Troubles: Short Distance



Cause and Remedy:



*  Environment very bad or the antenna is blocked

*  Power match or not. Voltage and current is large enough

*  The existence of the same frequency or magnetic or electrical interference, or replacement of the

   channel away from sources of interference
