Low Consumption 100MW SPI Long Range Rf Transceiver Module Data Communication Module

large.img.alt
small.img.alt

Large Image :  Low Consumption 100MW SPI Long Range Rf Transceiver Module Data Communication Module Get Best Price

Product Details:
Place of Origin: Shenzhen
Brand Name: JZX
Certification: CE
Model Number: JZX876A
Payment & Shipping Terms:
Price: Negotiation
Payment Terms: Western Union, T/T
Detailed Product Description
High Light:

Low Power RF Module

,

RF wireless module

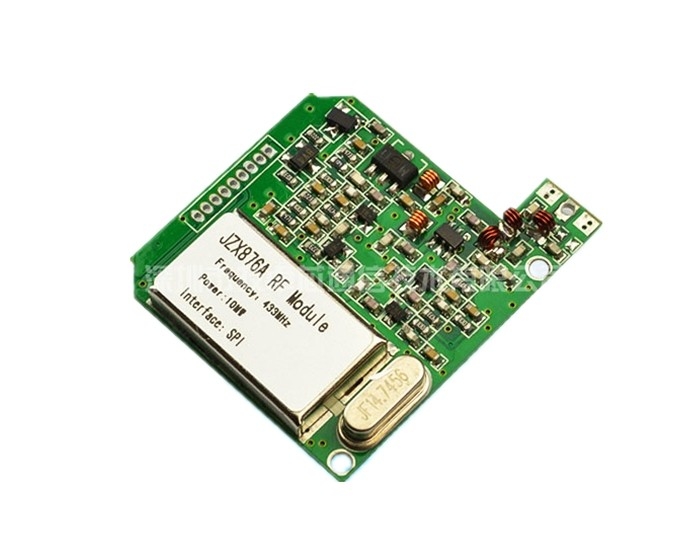

Low-power in 100MW , SPI Interface RF Transmitter And Receiver Module JZX876A



Technical specification:



1. Working frequency: 433+-5MHZ, capable of 868MHz


2. Transmission power: 100mW


3. Receiving sensitivity: -123dBm


4. Transmitting current:: <150mA,


5. Receiving current: <35mA


6. Power supply: 3V


7. Working temperature:- ~65


8. Working humidity: 10%~90% relative humidity without condensation


9. Dimension: 17mm×33mm×10 mm





Features:


1. ISM frequency band, not requiring on application of frequency point


    Carrier frequency of 433+-5MHz,also capable of 868MHz.


2. High anti-interference and low BER (Bit error Rate)


    Based on the GFSK modulation mode, it adopts the efficient communication protocol. The actual bit
    error rate of 10-5 ~ 10-6 can be achieved when channel bit error rate is 10-2.



3. Long transmission distance


   JZX876 A Within the range of visibility, the reliable transmission distance is(BER=10-3/1200bps),>1500m,    (BER=10- 3/9600bps)>1000m when the antenna is higher than 3M.


4. Power:JZ876 A: 2.5V—3.6V


5. IC IC :CC1020.





Application:


Intelligent home, wireless ordering system, water, electric three tables,

measuring equipment, automatic control,

and other areasof data control and data transmission.
